Head-Exchangeable Drills-QD-183-RA
- item No : QD-183-RA
- Head exchangeable drills, head style RA, Dia. 18.3mm, PVD-TiALN for carbon steel and alloyed steel.
- Inquiry now
Detailed description

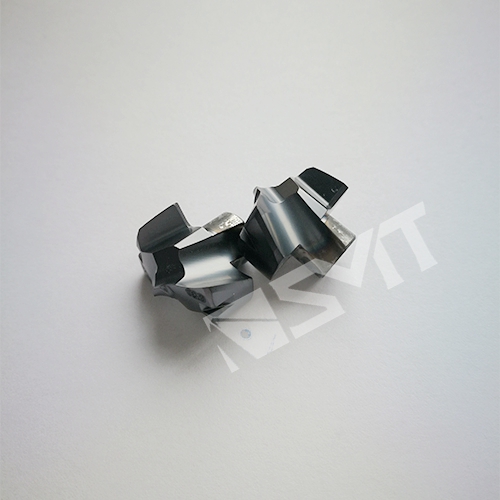

Self-locking Head-exchangeable drills- Carbide drill head-RA
- With centering function;
- Point Angle: 140°;
- Drill Diameter 8-26mm, available in 0.1mm increments;
- Drill bodies are available in L/D ratios of 1.5xD,3xD,5xD,8xD and 12xD;
- Drill bodies are highly polished, internal cooling through;
- Drill tips are in micrograin carbide grade, PVD-TiALN coating;
- Work on carbon steel, alloy steel and nodular cast iron.
|

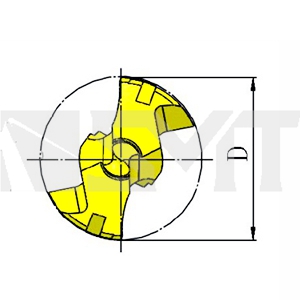

Designation |
DIMENSIONS(mm) |
Drill body |
|
|
D |
t |
||
|
QD-180-RA |
18.0 |
10.5 |
QD180/189-25-xD-CA |
|
QD-181-RA |
18.1 |
10.5 |
|
|
QD-182-RA |
18.2 |
10.5 |
|
|
QD-183-RA |
18.3 |
10.5 |
|
|
QD-184-RA |
18.4 |
10.5 |
|
|
QD-185-RA |
18.5 |
10.5 |
|
|
QD-186-RA |
18.6 |
10.5 |
|
|
QD-187-RA |
18.7 |
10.5 |
|
|
QD-188-RA |
18.8 |
10.5 |
|
|
QD-189-RA |
18.9 |
10.5 |
|
