Head-Exchangeable Drills-QD-115-RA
- item No : QD-115-RA
- Head exchangeable drills, head style RA, Dia. 11.5mm, PVD-TiALN for carbon steel and alloyed steel.
- Inquiry now
Detailed description

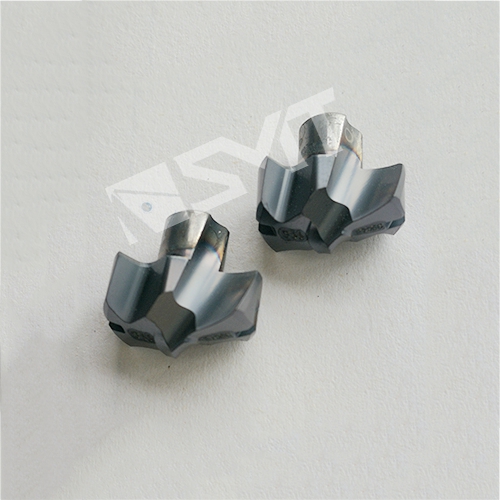

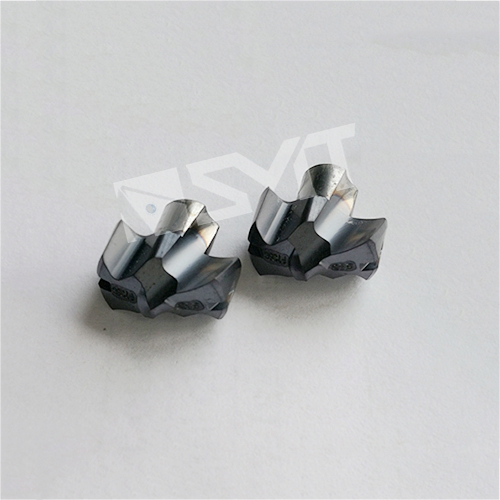

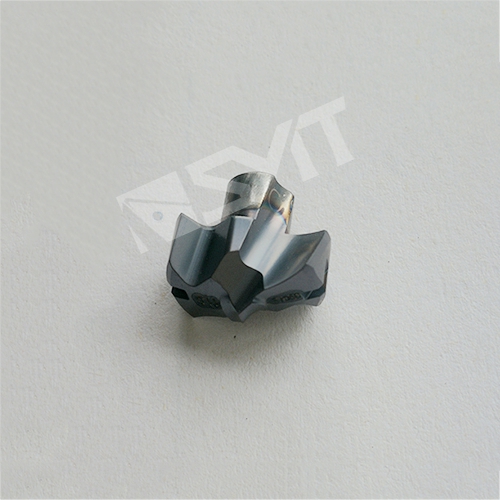

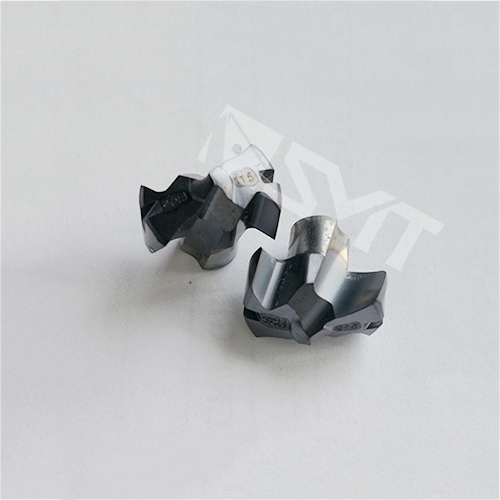

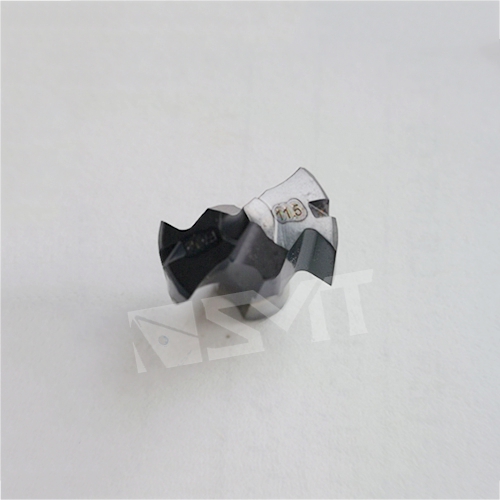

Self-locking Head-exchangeable drills- Carbide drill head-RA
- With centering function;
- Point Angle: 140°;
- Drill Diameter 8-26mm, available in 0.1mm increments;
- Drill bodies are available in L/D ratios of 1.5xD,3xD,5xD,8xD and 12xD;
- Drill bodies are highly polished, internal cooling through;
- Drill tips are in micrograin carbide grade, PVD-TiALN coating;
- Work on carbon steel, alloy steel and nodular cast iron.
|

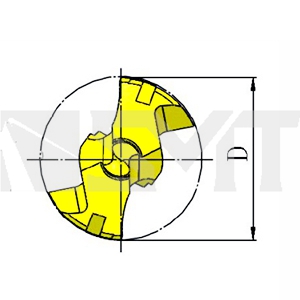

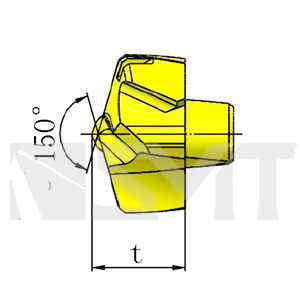

Designation |
DIMENSIONS(mm) |
Drill body |
|
|
D |
t |
||
|
QD-110-RA |
11.0 |
6.6 |
QD110/119-16-xD-CA |
|
QD-111-RA |
11.1 |
6.6 |
|
|
QD-112-RA |
11.2 |
6.6 |
|
|
QD-113-RA |
11.3 |
6.6 |
|
|
QD-114-RA |
11.4 |
6.6 |
|
|
QD-115-RA |
11.5 |
6.6 |
|
|
QD-116-RA |
11.6 |
6.6 |
|
|
QD-117-RA |
11.7 |
6.6 |
|
|
QD-118-RA |
11.8 |
6.6 |
|
|
QD-119-RA |
11.9 |
6.6 |
|
