Top-Notch threading-NTP3R
- item No : NTP3R
- NTP3R Standard Notch V-thread inserts, Partial profile 60° (non-cresting), 5º Positive rake, double-ended, Insert size=3, precision ground, right hand, PVD-TiALN, for a range of materials
- Inquiry now
Detailed description

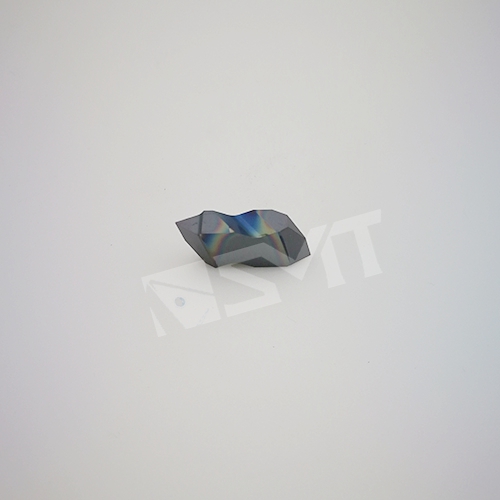

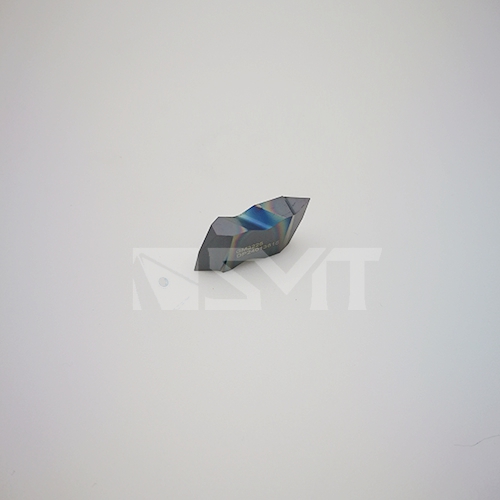

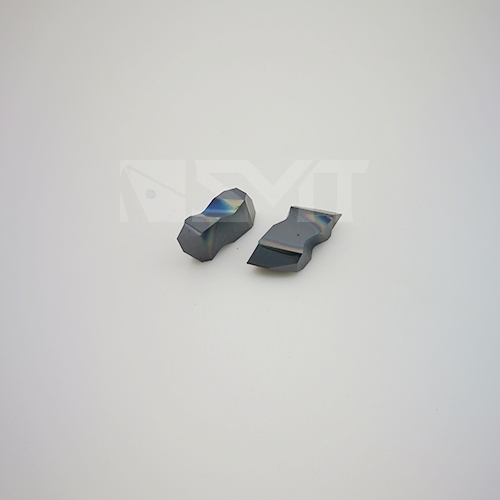

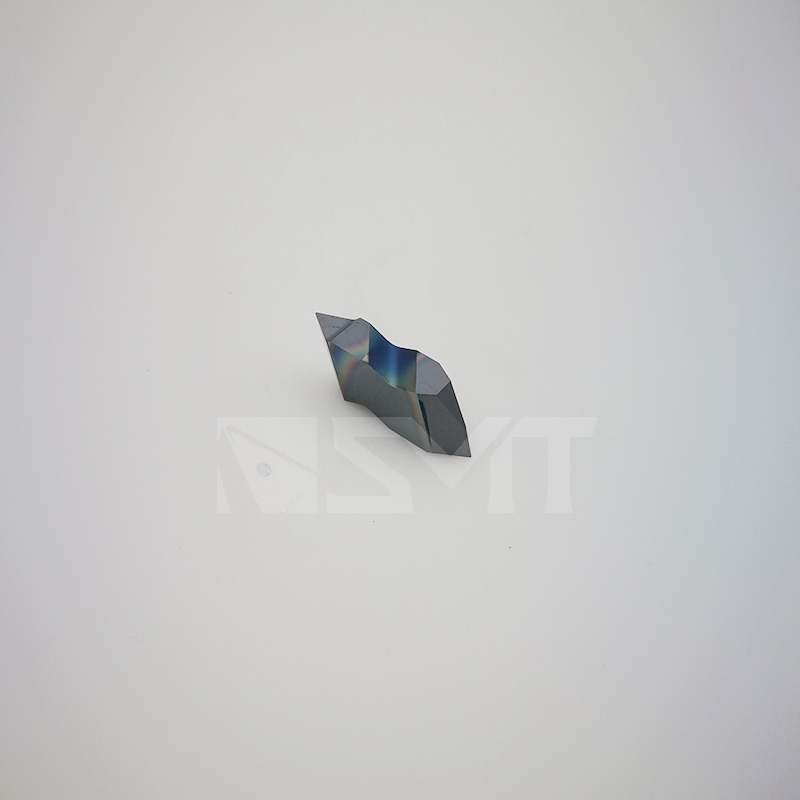

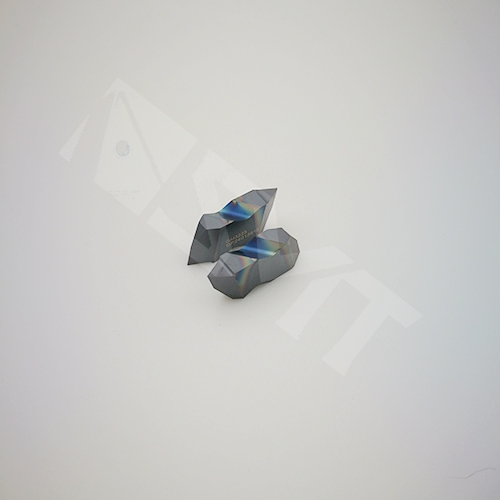

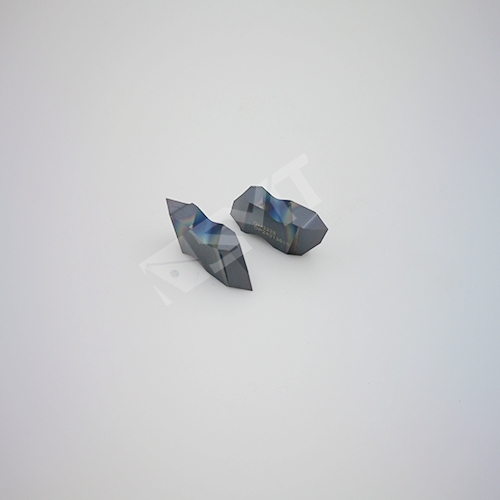

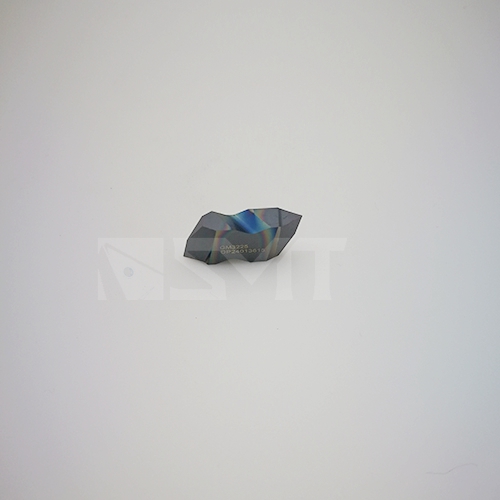

NTP3R--Standard Notch V-thread Carbide Inserts
60° Partial Profile, 5º Positive rake angle
|
Items |
Dimensions(mm) |
Insert Size |
||||||
|
R |
E |
Pitch |
||||||
|
EXT. (mm) |
INT. (mm) |
EXT. (TPI) |
INT. (TPI) |
|||||
|
NTP3R |
NTP3L |
0.17 |
2.49 |
1.25-4.00 |
2.00-5.00 |
4-20 |
5-12 |
3 |
- Precision ground standard Notch insert
- Specialized edge treatment for extended tool life
- 2 cutting edges per insert for a cost-efficient threading solution 60° partial profile V-thread forms for a range of thread pitche
- 5° positive rake for improved cutting actions and reduced cutting forces.Available in both right-hand and left-hand
- Interchangeable with other notch threading inserts, can fit the tools with the same type of inserts.
- A good combination of micro-grain substrate and new TiALN coating for excellent heat resistance, high wear resistance and good surface finish.
- Good performance in steel, stainless steel and cast iron
