Thread-turning-16ER 16UNJ
Thread-turning-16ER 16UNJ Thread-turning-16ER 16UNJ Thread-turning-16ER 16UNJ Thread-turning-16ER 16UNJ Thread-turning-16ER 16UNJ
  • Thread-turning-16ER 16UNJ

  • item No : 16ER 16UNJ

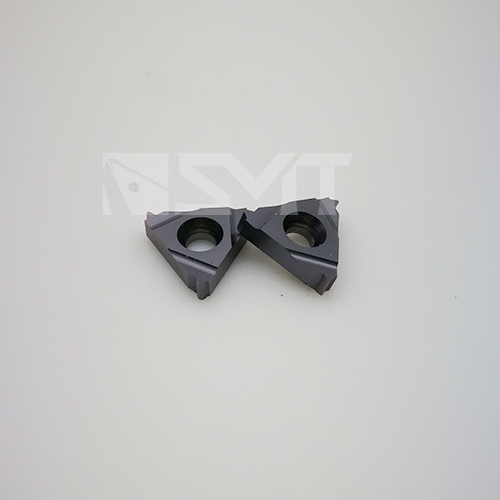

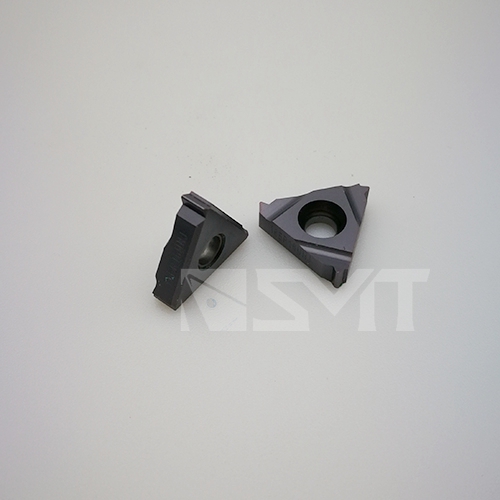

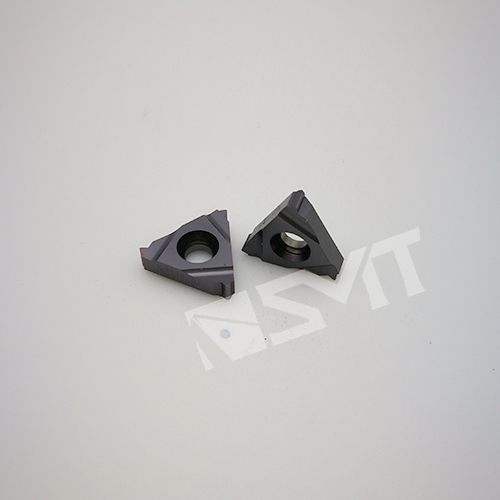

  • Laydown thread turning, 16ER 16UNJ, UNJ-60, Aviation thread, Right hand, external thread, 16TPI, Insert thickness 3.65mm, submirco-carbide grade with PVD-TiALN for steel and stainless.
  • Inquiry now

Detailed description

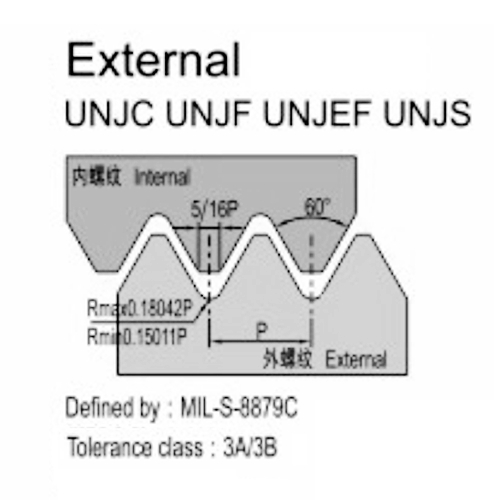

Thread-turning-UNJ-Aviation Thread-External




I.C.

Pitch

Designation

Dimensions(mm)

TPI

RH

LH

L

X

Y

T

1/4″

28

11ER 28UNJ

11NL 28UNJ

11

 0.7

0.7

3.2

24

11ER 24UNJ

11NL 24UNJ

 0.7

0.8

20

11ER 20UNJ

11NL 20UNJ

0.8

0.9

18

11ER 18UNJ

11NL 18UNJ

0.8

1.0

16

11ER 16UNJ

11NL 16UNJ

0.9

1.1

14

11ER 14UNJ

11NL 14UNJ

1.0

1.2

3/8″

28

16ER 28UNJ

16NL 28UNJ

16

0.7

0.7

3.65

24

16ER 24UNJ

16NL 24UNJ

0.7

0.8

20

16ER 20UNJ

16NL 20UNJ

0.8

0.9

18

16ER 18UNJ

16NL 18UNJ

0.8

1.0

16

16ER 16UNJ

16NL 16UNJ

0.9

1.1

14

16ER 14UNJ

16NL 14UNJ

1.0

1.2

13

16ER 13UNJ

16NL 13UNJ

1.0

1.3

12

16ER 12UNJ

16NL 12UNJ

1.1

1.3

11

16ER 11UNJ

16NL 11UNJ

1.2

1.5

10

16ER 10UNJ

16NL 10UNJ

1.2

1.5

9

16ER 9UNJ

16NL 9UNJ

1.3

1.7

8

16ER 8UNJ

16NL 8UNJ

1.2

1.6

1/2″

7

 22ER 7UNJ

22EL7 UNJ

22

1.7

2.3

4.76

6

22ER 6UNJ

22EL6UNJ

1.6

2.3

5

22ER5UNJ

22EL5UNJ

1.8

2.5

5/8″

4.5

27ER4.5UNJ

27EL 4.5UNJ

27

2.0

2.7

6.35

4

27ER 4UNJ

27EL 4 UNJ

2.2

3.0
