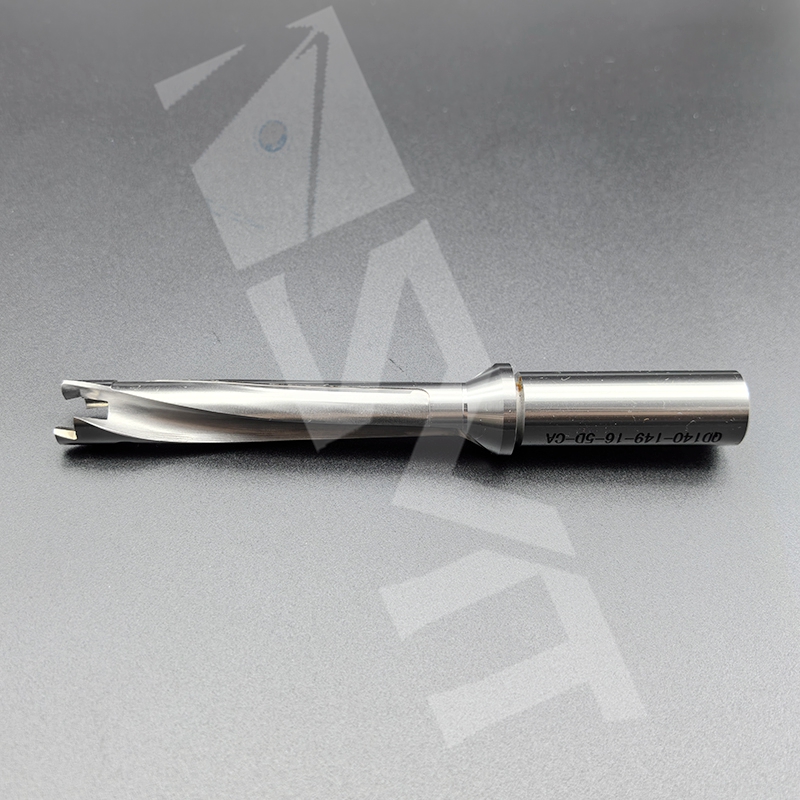

Head-Exchangeable Drills-QD140-149-16-5D-CA
- item No : QD140-149-16-5D-CA
- Head Exchangeable Drill Body, Slef-locking, Uni-tip, shank D16, 5xD, with internal coolant channel, for head size 14.0-14.9, for head style QD-RA,QD-RB, QD-F, QD-S1/A, QD-S1/A(S), QD-S2/A,and QD-C.
- Inquiry now
Detailed description

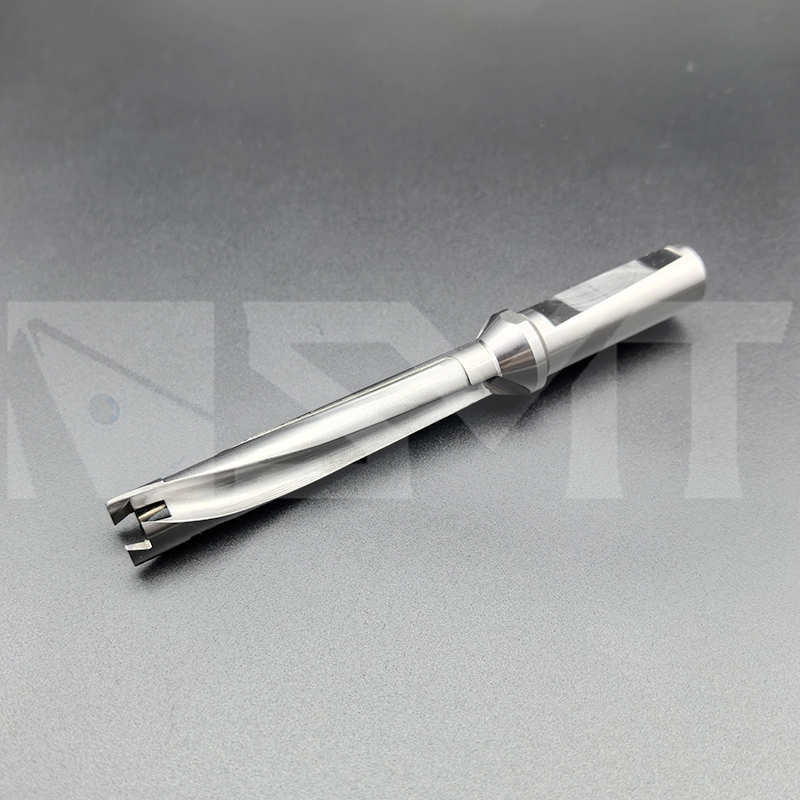

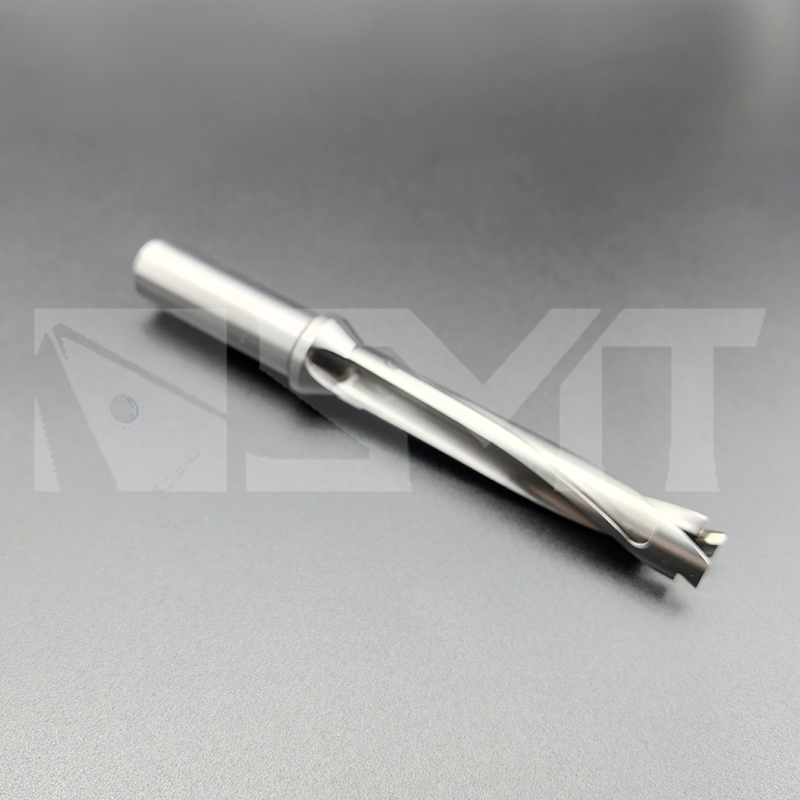

Head Exchangeable Drill
QD-Uni-tip- drill Body-5xD
-L/D Ratio: 5xD
- Highly polished, with internal coolant holes.
- Qdrill bodies available with shank diameters 12mm,16mm, 20mm, 25mm and 32mm.
- 6 types of heads available: RA, RB, S1/A, S2/A, F and C.
Designation
Head Dia.
(mm)
Dimensions(mm)

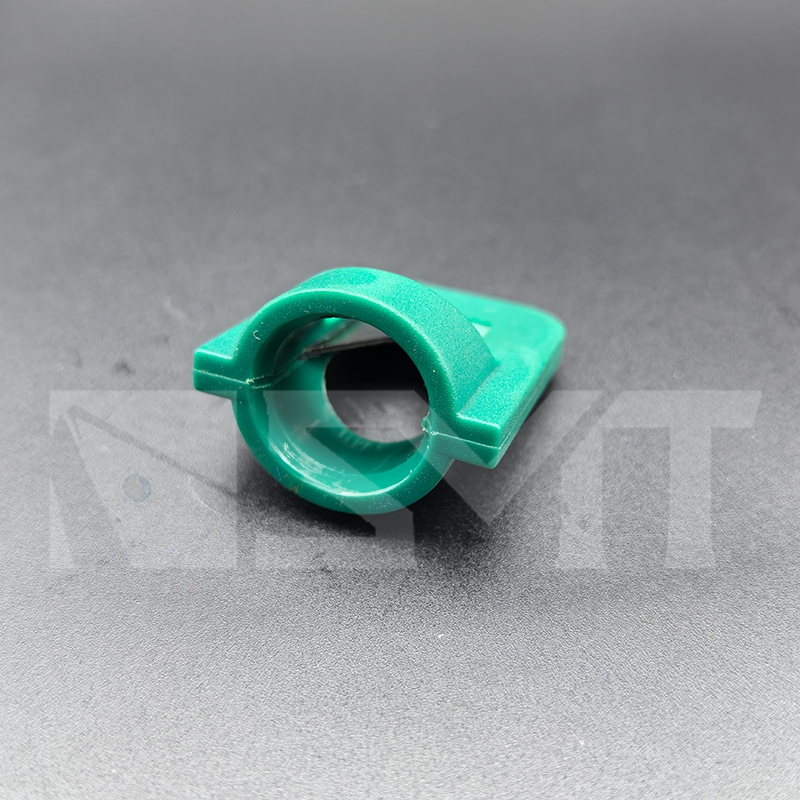

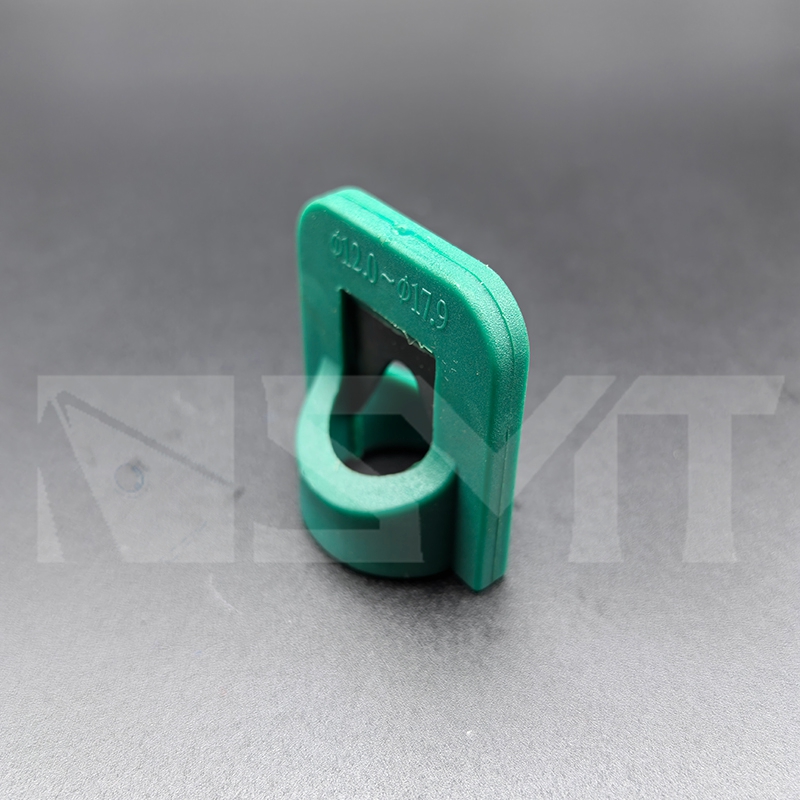

Wrench
d
D3
L1
Ls
D
QD080/089-12-5D-CA
8.0-8.9
12
16
50
45
7.8
8-11.9
QD090/099-12-5D-CA
9.0-9.9
12
16
55
45
8.8
QD100/109-16-5D-CA
10.0-10.9
16
20
60
48
9.8
QD110/119-16-5D-CA
11.0-11.9
16
20
66
48
10.8
QD120/129-16-5D-CA
12.0-12.9
16
20
71
48
11.8
12-16.9
QD130/139-16-5D-CA
13-13.9.0
16
20
77
48
12.8
QD140/149-16-5D-CA
14.0-14.9
16
20
82
48
13.8
QD150/159-20-5D-CA
15.0-15.9
20
25
88
50
14.8
QD160/169-20-5D-CA
16.0-16.9
20
25
93
50
15.8
QD170/179-20-5D-CA
17.0-17.9
20
25
99
50
16.8
17-20.9
QD180/189-25-5D-CA
18.0-18.9
25
32
104
56
17.8
QD190/199-25-5D-CA
19.0-19.9
25
32
110
56
18.8
QD200/209-25-5D-CA
20.0-20.9
25
32
115
56
19.8
QD210/219-25-5D-CA
21.0-21.9
25
32
121
56
20.8
21-26
QD220/229-25-5D-CA
22.0-22.9
25
32
126
56
21.8
QD230/239-32-5D-CA
23.0-23.9
32
42
132
60
22.8
QD240/249-32-5D-CA
24.0-24.9
32
42
137
60
23.8
QD250/260-32-5D-CA
25.0-26.0
32
42
143
60
24.8
