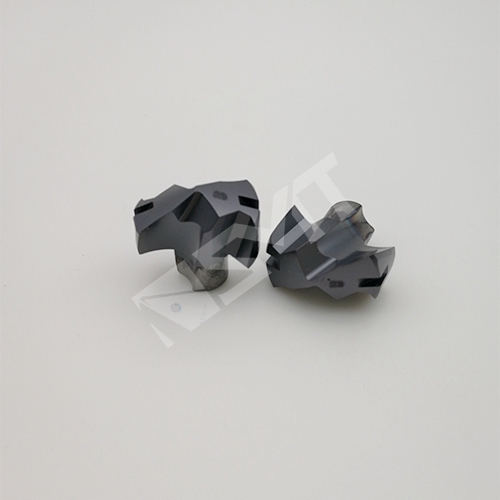

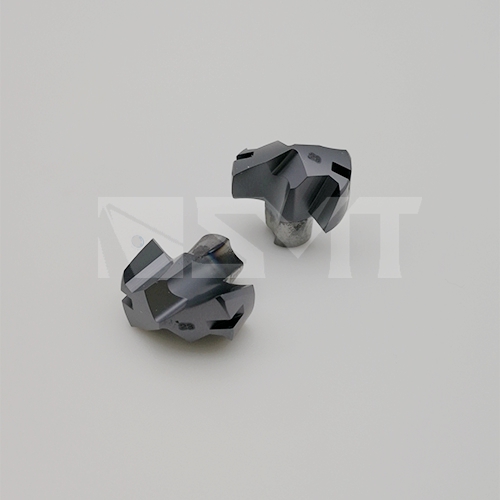

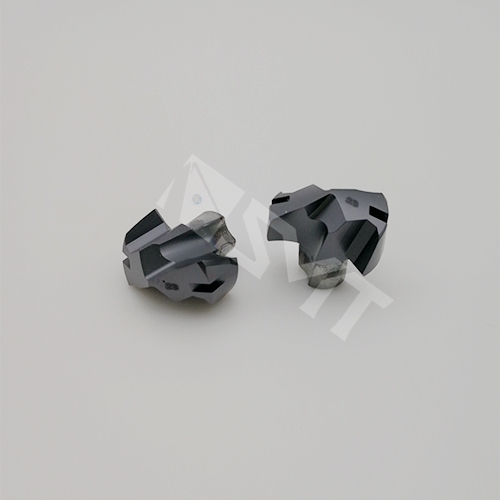

Head Exchangeable drills-QD-230-S1/A
- item No : QD-230-S1/A
- Head Exchangeable drills, QD-230-S1/A, Drill head style-S1/A, Dia 23.0mm, PVD -TIALN for carbon steel.
- Inquiry now
Detailed description
Head Exchangeable Drill head
QD-S1/A
- Drill diameter 8-26 mm, available in 0.1mm increments

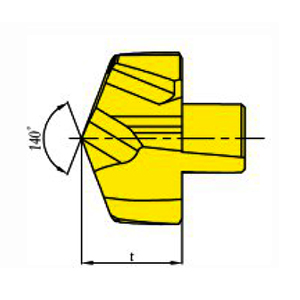

- Point angle: 140°
- Cutter bodies are available in 1.5xD,3xD,5xD,8xD and 12xD
- Work on medium-high carbon steel, alloyed steel, nodular cast iron
- Micro-grain carbide grade, PVD-TIALN coating
|
Designation |
Dimensions(mm) |
Drill Body |
|
|

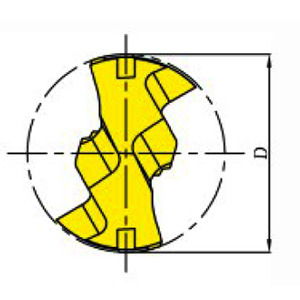

D |
t |
||
|
QD-230-S1/A |
23.0 |
13.3 |

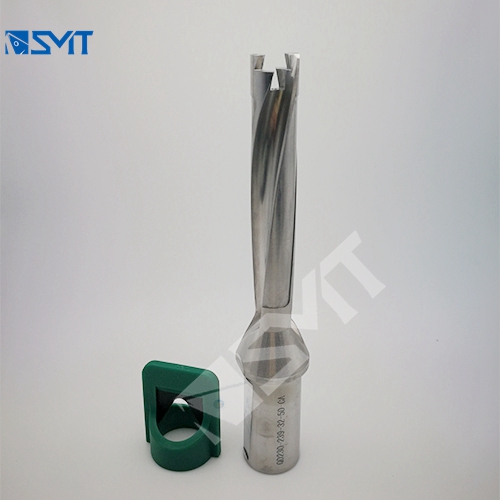

QD230/239-32-xD-CA |
|
QD-231-S1/A |
23.1 |
13.3 |
|
|
QD-232-S1/A |
23.2 |
13.3 |
|
|
QD-233-S1/A |
23.3 |
13.3 |
|
|
QD-234-S1/A |
23.4 |
13.3 |
|
|
QD-235-S1/A |
23.5 |
13.3 |
|
|
QD-236-S1/A |
23.6 |
13.3 |
|
|
QD-237-S1/A |
23.7 |
13.3 |
|
|
QD-238-S1/A |
23.8 |
13.3 |
|
|
QD-239-S1/A |
23.9 |
13.3 |
|
