Head-Exchangeable Drills-QD-135-RA
- item No : QD-135-RA
- Head exchangeable drills, head style RA, Dia. 13.5mm, PVD-TiALN for carbon steel and alloyed steel.
- Inquiry now
Detailed description

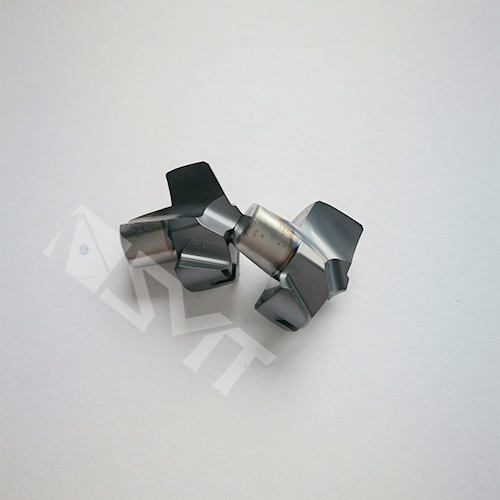

Self-locking Head-exchangeable drills- Carbide drill head-RA
- With centering function;

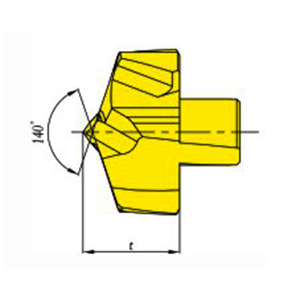

- Point Angle: 140°;
- Drill Diameter 8-26mm, available in 0.1mm increments;
- Drill bodies are available in L/D ratios of 1.5xD,3xD,5xD,8xD and 12xD;
- Drill bodies are highly polished, internal cooling through;
- Drill tips are in micrograin carbide grade, PVD-TiALN coating;
- Work on carbon steel, alloy steel and nodular cast iron.
|

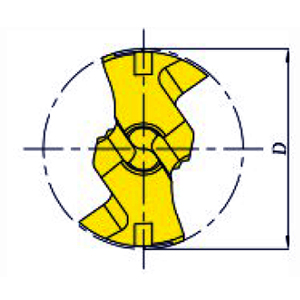

Designation |
DIMENSIONS(mm) |
Drill body |
|
|
D |
t |
||
|
QD-130-RA |
13.0 |
7.6 |
QD130/139-16-xD-CA |
|
QD-131-RA |
13.1 |
7.6 |
|
|
QD-132-RA |
13.2 |
7.6 |
|
|
QD-133-RA |
13.3 |
7.6 |
|
|
QD-134-RA |
13.4 |
7.6 |
|
|
QD-135-RA |
13.5 |
7.6 |
|
|
QD-136-RA |
13.6 |
7.6 |
|
|
QD-137-RA |
13.7 |
7.6 |
|
|
QD-138-RA |
13.8 |
7.6 |
|
|
QD-139-RA |
13.9 |
7.6 |
|
