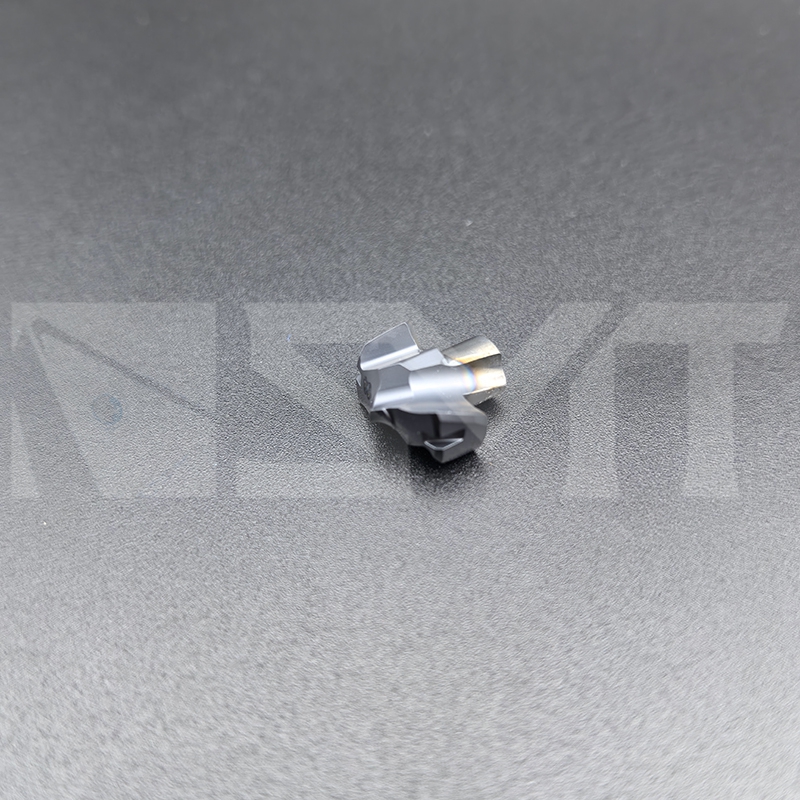

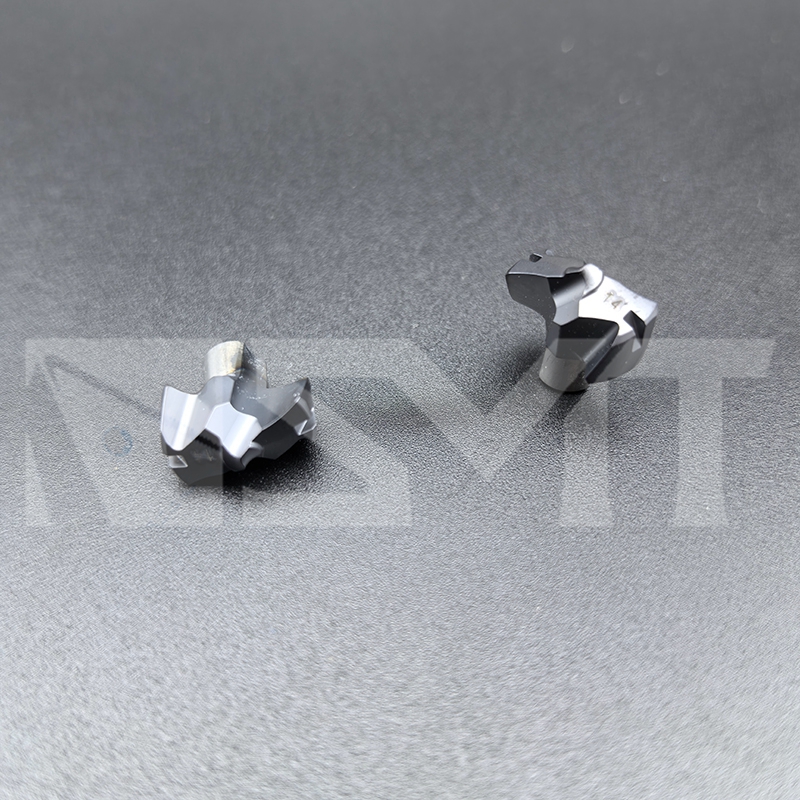

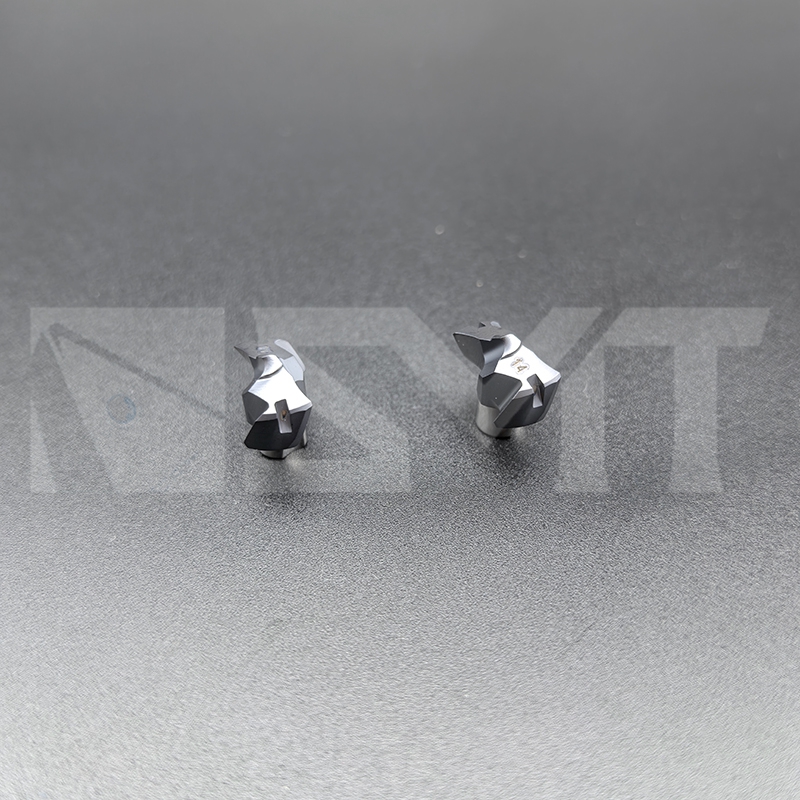

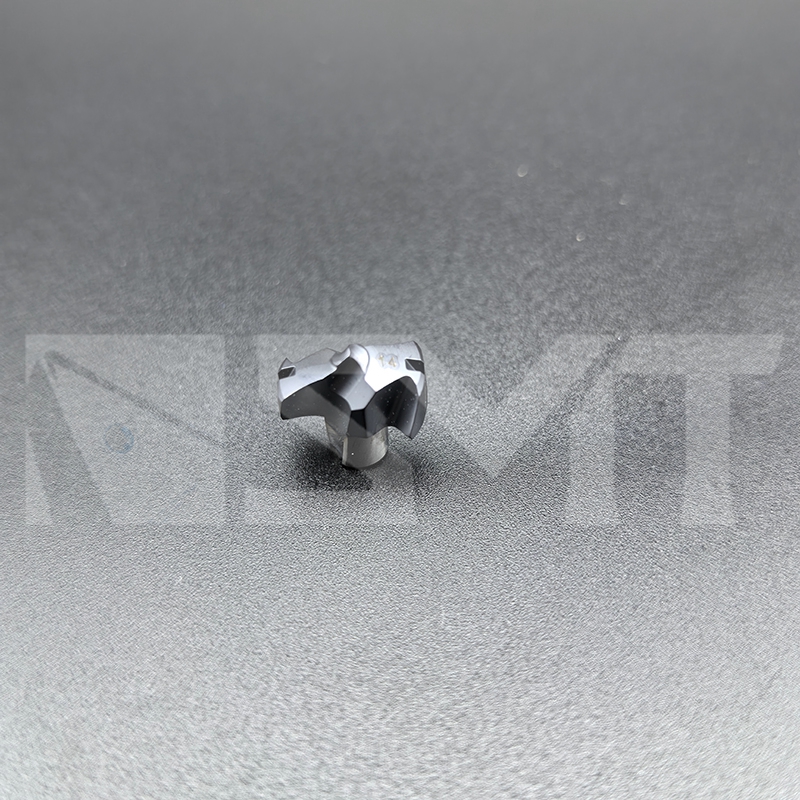

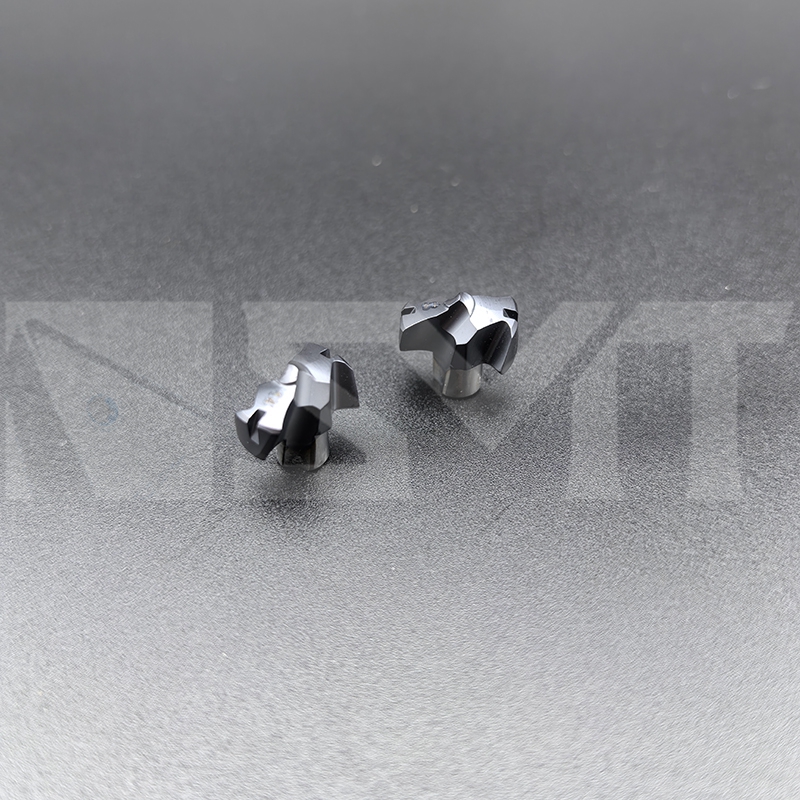

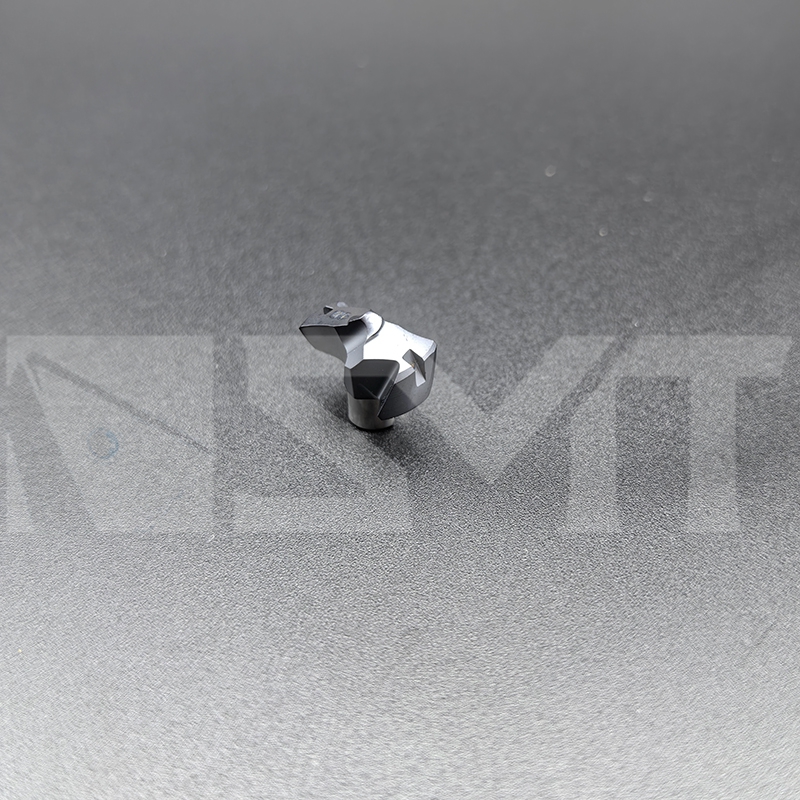

Head-Exchangeable Drills-QD-140-RA
- item No : QD-140-RA
- Head exchangeable drills, head style RA, Dia. 14.0mm, PVD-TiALN for carbon steel and alloyed steel.
- Inquiry now
Detailed description
Self-locking Head-exchangeable drills- Carbide drill head-RA
- With centering function;
- Point Angle: 140°;
- Drill Diameter 8-26mm, available in 0.1mm increments;
- Drill bodies are available in L/D ratios of 1.5xD,3xD,5xD,8xD and 12xD;
- Drill bodies are highly polished, internal cooling through;
- Drill tips are in micrograin carbide grade, PVD-TiALN coating;
- Work on carbon steel, alloy steel and nodular cast iron.
|

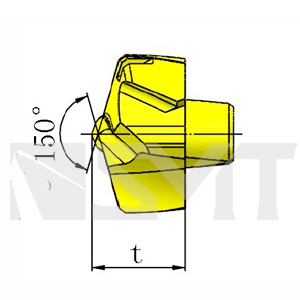

Designation |
DIMENSIONS(mm) |
Drill body |
|
|
D |
t |
||
|
QD-140-RA |
14.0 |
8.1 |
QD140-149-16-xD |
|
QD-141-RA |
14.1 |
8.1 |
|
|
QD-142-RA |
14.2 |
8.1 |
|
|
QD-143-RA |
14.3 |
8.1 |
|
|
QD-144-RA |
14.4 |
8.1 |
|
|
QD-145-RA |
14.5 |
8.1 |
|
|
QD-146-RA |
14.6 |
8.1 |
|
|
QD-147-RA |
14.7 |
8.1 |
|
|
QD-148-RA |
14.8 |
8.1 |
|
|
QD-149-RA |
14.9 |
8.1 |
|
